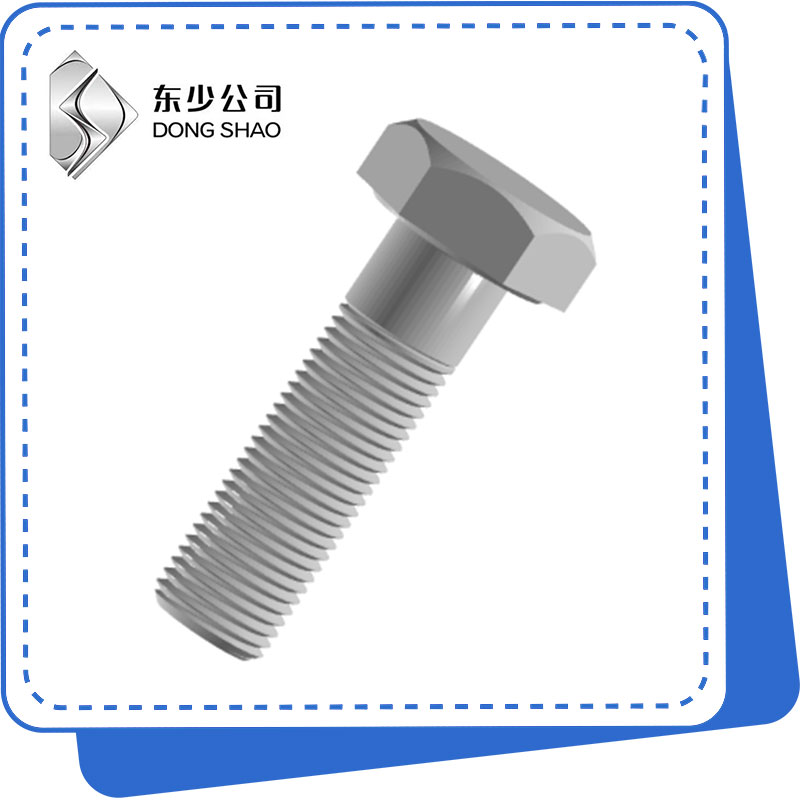

Nā Poʻo Hexagon Pitch maikaʻi

Hoʻokipa ʻia ʻoe e hele mai i kā mākou hale hana e kūʻai i nā mea kūʻai aku hou loa, ke kumu kūʻai haʻahaʻa, a me nā kiʻekiʻe Fine-Pitch Hexagon Head Bolts, ke nānā nei ʻo DONGSHAO e hui pū me ʻoe.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻO Hebei Dongshao Fastener Manufacturing Co., Ltd. he mea hoʻolako kaulana a me ka mea hana i nā bolts poʻo hexagon Fine-pitch ma Kina.

ʻO nā poʻo poʻo hexagon Fine-pitch i hanaʻia e ka hui i hanaʻia me ke kila kiʻekiʻe me ka ikaika kiʻekiʻe, ka paʻakikī a me ke kū'ēʻana i ka corrosion, ke kūpaʻa maikaʻi a me ke ola lōʻihi.

ʻO kāna hoʻolālā ʻāʻī lahilahi e hiki ai i ka bolt ke lawe i ka ukana a ʻoi aku ka maikaʻi o ka hopena i ka wā e hoʻohana ai, a e maʻalahi hoʻi ka hoʻonohonoho ʻana.

Easy installation: The hexagonal head and thread design make it easy to install, while tightening with conventional manual or mechanical tools, reducing overall installation time and cost.

Me nāʻano kiko'ī a me nā nui: Loaʻa nā'ōpena poʻo hexagon maikaʻi i nāʻano kiko'ī a me nā nui e kūpono i nā pono likeʻole. Hiki i kēia ke hoʻomaikaʻi i ka maʻalahi o ke kūʻai.

Laina Huahana

(mm)	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52	M56	M60	M64
P	1	1	1.5	1.5	1.5	1.5	1.5	1.5	2	2	2	2	3	3	3	3	3	4	4	4	4
da max	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6	63	67	71
ds max	8	10	12	14	16	18	20	22	24	27	30	33	36	39	42	45	48	52	56	60	64
ds min	7.78	9.78	11.73	13.73	15.73	17.73	19.67	21.67	23.67	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26	55.26	59.26	63.26
a me min	14.38	17.77	20.03	23.36	26.75	30.14	33.53	37.72	39.98	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25	93.56	99.21	104.86
k max	5.45	6.58	7.68	8.98	10.18	11.715	12.715	14.215	15.215	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5	35.5	38.5	40.5
k min	5.15	6.22	7.32	8.62	9.82	11.285	12.285	13.785	14.785	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5	34.5	37.5	39.5
r min	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1	1	12	1.2	1.6	1.6	2	2	2
s max	13	16	18	21	24	27	30	34	36	41	46	50	55	60	65	70	75	80	85	90	95
s min	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1	82.8	87.8	92.8
