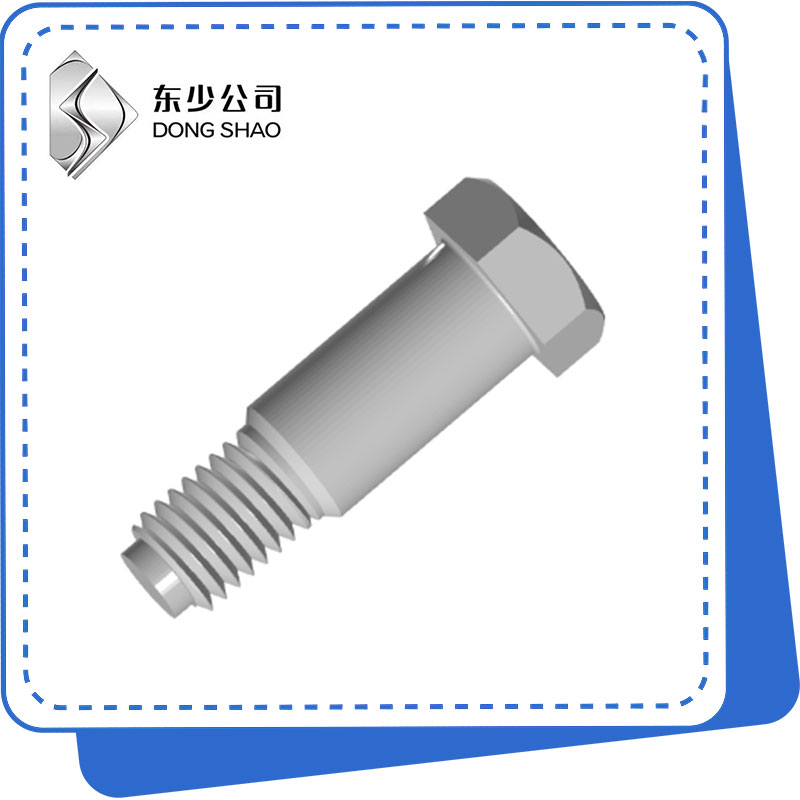

Hexagon Head Bolts me ka Hole

Ma ke ʻano he mea hana akamai, manaʻo ʻo DONGSHAO e hāʻawi iā ʻoe i nā Hexagon Head Bolts me ka Hole. Hoʻohiki mākou e hāʻawi iā ʻoe i ke kākoʻo maikaʻi loa ma hope o ke kūʻai aku a me ka lawe wikiwiki ʻana.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻO Hebei Dongshao Fastener Manufacturing Co., Ltd. he mea hoʻolako kaulana a me ka mea hana i nā bolts hexagon head me ka lua ma Kina.

ʻO nā poʻo hexagon poʻo me ka lua i hana ʻia e ka hui e loaʻa nā ʻano a me nā noi: Hana: ʻO ka ʻaoʻao mua o nā poʻo hexagon poʻo me ka lua e pāʻani i ke kuleana o ka hoʻopaʻa ʻana i ka pilina, a ʻo ka ʻāpana me ka ʻole o ke kaula ma ka hope hope hiki ke pāʻani pū i ka. kuleana o ka hoonoho ana.

Manaʻo hana: ʻO ke poʻo hexagon me ka puka e hilinaʻi i ka hana ʻoki ʻana o ka bolt ponoʻī e pale aku i ka neʻe ʻana o ka pili, a ʻo ka ikaika mua o ka paʻa ʻana he liʻiliʻi. ʻO ka bolt hole reamed ka mea like, ʻo ia ka hoʻohālikelike nui.

Nā hiʻohiʻona: hoʻohana nui ʻia nā poʻo hexagon me ka lua no ka ukana nui, ka hopena koʻikoʻi a me ke koi ʻana o ka seagull beam i ka manawa, ʻoi aku ka kiʻekiʻe o ka hana ʻana, ʻoi aku ka paʻakikī o ka hui. hana ʻoihana.

Laina Huahana

(mm)	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M36	M42	M48
P	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
b max	11.5	14.5	17	19	23	26	28	29	32	35	38	46	50	59	63
b min	9.5	12.5	15	17	21	24	26	27	30	33	36	44	48	57	61
ds max	7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
ds min	6.964	8.964	10.957	12.957	14.957	16.957	18.948	20.948	22.948	24.948	27.948	31.938	37.938	43.938	49.938
s max	10	13	16	18	21	24	27	30	34	36	41	46	55	65	75
s min	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	53.8	63.8	73.1
k min	3.85	4.85	5.85	6.82	7.82	8.82	9.82	10.78	11.78	12.78	14.65	16.65	19.58	22.58	25.58
k max	4.15	5.15	6.15	7.18	8.18	9.18	10.18	11.22	12.22	13.22	15.35	17.35	20.42	23.42	26.42
r min	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1.2	1.6
dp	4	5.5	7	8.5	10	12	13	15	17	18	21	23	28	33	38
z	1.5	1.5	2	2	3	3	3	4	4	4	5	5	6	7	8
a me min	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98	45.2	50.85	60.79	72.02	82.6
