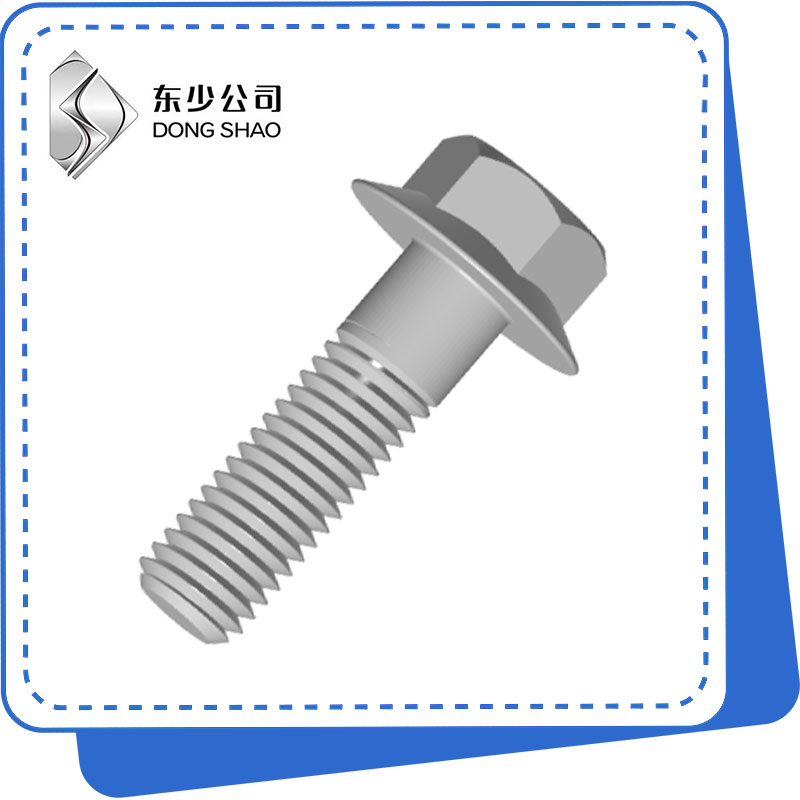

Hexagon Head Bolts me Flange

ʻO DONGSHAO kekahi o nā mea hana a me nā mea kūʻai aku i hana nui i ka Hexagon Head Bolts me Flange me nā makahiki he nui o ka ʻike. Manaʻolana e kūkulu i ka pilina ʻoihana me ʻoe.

E hoʻouna i ka nīnau

Hōʻike huahana

ʻO DONGSHAO kekahi o nā mea hana koʻikoʻi, mea hana, a me ka mea hoʻopuka o Hexagon Head Bolts me Flange ma Kina.

ʻO kāna hana ʻana i nā bolts hexagon head me ka flange he mau hiʻohiʻona kēia: Hiki i ke poʻo o ka bolt ke hāʻawi i ka torque nui aʻe a hāʻawi i ka pale paʻa loa no nā ʻāpana koʻikoʻi o ka flange hoʻopaʻa; aerospace a me nā kahua ʻē aʻe; He ikaika ka ikaika o ka hoʻopaʻa ʻana, hiki ke hōʻoia i ka paʻa lōʻihi a me ka hilinaʻi o ka mea hoʻohui; Me ka pololei maikaʻi, kūpono ia no ka hana ʻenehana a me ka hana hui. kahua ma muli o ko lākou ʻano hoʻolālā a me ka hana maikaʻi loa.

Eia kekahi mau hoʻohana maʻamau o nā poʻo hexagon me ka flange: ʻOihana kaʻa, hale mīkini, lako mana, ʻenekinia hana, alanui a me nā alahaka, nā mīkini kaumaha.

Laina Huahana

(mm)	M5	M6	M8	M10	M12	M14	M16	M20
P	0.8	1	1\|1.25	1\|1.25\|1.5	1\|1.25\|1.5\|1.75	1\|1.5\|2	1\|1.5\|2	1.5\|2\|2.5
da max	5.7	6.8	9.2	11.2	13.7	15.7	17.7	22.4
dc max	11.8	14.2	18	22.3	26.6	30.5	35	43
ds max	5	6	8	10	12	14	16	20
ds min	4.82	5.82	7.78	9.78	11.73	13.73	15.73	19.67
a me min	8.71	10.95	14.26	16.5	17.62	19.86	23.15	29.87
Lf max	1.4	2	2	2	3	3	3	4
k max	5.4	6.6	8.1	9.2	11.5	12.8	14.4	17.1
r min	0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.8
s max	8	10	13	15	16	18	21	27
s min	7.78	9.78	12.73	14.73	15.73	17.73	20.67	26.67
